Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment

China Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment supplier
Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment supplier Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment supplier Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment supplier

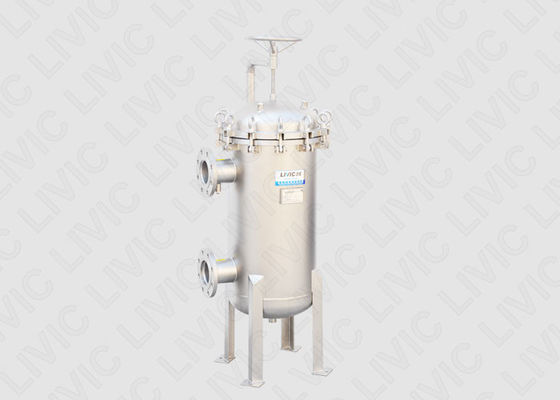

Large Image :  Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment

Product Details:

Place of Origin: China
Brand Name: LIVIC
Certification: ISO9001/SGS
Model Number: BFM

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 30 days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per year
Detailed Product Description
Style: Vertical Motive Force: Pressure
Brand: LIVIC Standard: SGS
Origin: Shanghai

Maxline Multi-Bag Filter Housing for Industrial Water Treatment​





Description



Multi-bag filter housing with capacities of up to 12 size 02 bags. Positive o-ring sealing offers easy and safe operation.  Ideal for process that demand frequent bag-change-outs and for batch process runs with high dirt load applications.



Specifications:



Main Model BFM2/BFM3/BFM4/BFM5/BFM6/BFM7/BFM8/BFM9/BFM10/BFM11/BFM12
Design Pressure ( MPa ) 1.0/1.6
Design Temperature ( ℃ ) 0-250①
Filtration Rate ( μm ) 1-2000
Housing Material 304/316L
Support Legs, Bolts & Nuts Material SS
Seal Material NBR/EPDM/VITON/Silastic/PTFE encapsulated Silastic/PTFE
Outside Surface Finish Bead Blasted
Inside Surface Finish 120Mesh Polishing ( Standard ), Food Grade Polishing, Halar Coating, PA11 Coating
Standard Inlet & Outlet Connection Flange HG20592-2009( DIN )
Optional Connection Flange HG20615-2009 ( ANSI ), NPT, Standard Sanitary Clamp
Inlet and Outlet Size DN80-DN250

  •

Applications:



  • Automotive
  • Food and Beverage
  • Chemical Processing
  • Paints, Inks, Resins and Coatings
  • Electronics
  • Petrochemicals
  • Municipal Water Treatment
  • Industrial Water Treatment
  • Pulp and Paper
  • Pharmaceutical
  • Lubricants, Metalworking Fluids
  • Solvents



TECHNICAL FEATURES AND ADVANTAGES



  • Available in Type 304 stainless steel or carbon steel with standard Buna N o-rings, Viton o-rings are available as an option.
  • Hydraulic assisted davit cover is available as an option.
  • Tapered, electro-polished stainless steel perforated baskets.
  • Unique 3-point hold down ensures a high-quality seal between each filter bag and the housing body. A supplied special tool ensures, simple effective operation.
  • Positive o-ring sealing provides reliable operation.
  • Available in seven sizes for 3 through 24 standard size 02 double length filter bags.

Multi Bag Filter Housing Reliable Operation For Industrial Water Treatment
