Water Treatment Filters DFX Series , V - Slot Series Scraper Filter 50-500µM

Basic Information
Place of Origin: Shanghai
Brand Name: LIVIC
Certification: ISO9001/SGS
Model Number: DFX
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Polywood
Delivery Time: 60 work days
Supply Ability: 100pcs per year
Detail Information
Housing Material: 304,316,CS Viscosity: 1-800000
Temperature: 200℃ Filtration Rating: 50-3000micron
Design Pressure: 1.0MPa Filter Element: V-slot Series, POR Series
High Light:

Water Treatment Equipment

,

Water Treatment Filters


Product Description

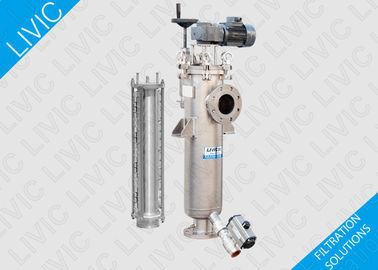

Self-cleaning Metal Edge Filter , DFX Series for Monomer and Polymer Filtration





Description

DFX series self-cleaning filter (DFX Filter for short), is the high efficiency self-cleaning filter independently developed by LIVIC. Removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line.DFX filter is designed for fine and accurate filtration ranging from 50-500micron. It can avoid extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps. DFX filter is designed and manufactured per LIVIC’s high performance, high quality and high reliability standard. It is a world-class quality filter.



The conventional filters get clogged frequently when filtering the viscous liquid and removing the soft impurities. The customers have to select larger filters and clean the filter manually and frequently, which means expensive investment, hard work, valuable liquid loss. DFX filter solves these kinds of problems by its advanced self-cleaning. It always keeps the filter element clean, discharges waste liquid with high impurity concentration, reduces the liquid loss. When filtering the viscous liquids such as dirty water, adhesives, resins, polymers and oil, DFX filter works more efficiently. DFX filter is taking place fo vibrating screen, bag filter, basket filter and some kind of back-flushing filter by its technical advantages and low running cost.

Specifications:



Applicable Liquid water and viscous liquids(<800000cps), impurity<1000ppm
Filtration Rating 50-500µm
Standard Design Pressure 1.0 MPa, high design pressure available
Design Temperature 0-200°C( determined by the seal material)
Filter Area Per Filter 0.11m²-1.36m²
Cleaning Differential Pressure 0.05MPa
Differential Pressure Instrument differential pressure tansmitter(DPT) or diffential pressure switch(DPS)
Gear Motor 180w, three phase, 380V, protection class IP 55; worm reduction gear
Inlet and Outlet Standard flange, HG20592-2009(DIN compatible), HG20615-2009(ANSI B16.5 Compatible)

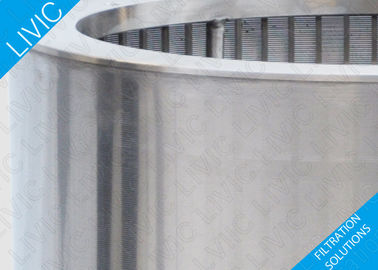

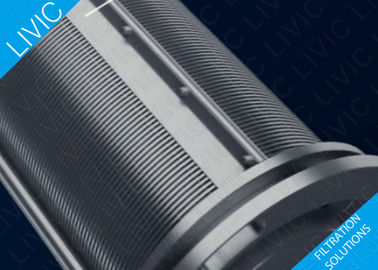

Filter Element Type V-SLOT slotted metal filter element, 316L material
Housing Wet Part Material 304/316L/CS
Scraping Blade Material 304/316L
Housing Seal Material NBR/VITION(FKM)
Discharging Valve Pneumatic ball valve, protection class IP65
Supply Facility Requirement 380V AC,0.4-0.6MPa clean and dry compressed air



Applications:

Applicable Industry: oil and fats, water treatment, pulp and paper, petro-chemical, fine chemical
Applicable Liquids: wax, kerosene, monomer, polymer, citric acid, fermented broth, cosmetics, silicon solution, soap, sorbitol, steriodsugar, wet end additives, adhesives, inks, lubricating oil, coatings, resin, rubber, ethanol, miscella, diesel, etc.Water Treatment Filters DFX Series , V - Slot Series Scraper Filter 50-500µM 0
