Process Water Automatic Self Cleaning Filters For Waste Water Filtration

Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001/SGS
Model Number GFK
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Polywood
Delivery Time 8-10weeks
Supply Ability 100pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
APPLICABLE LIQUID Fresh Water, Sea Water, Other Raw Water FLOWRATE RANGE 50-3000m³/h
Product Name Automatic Self Cleaning Filter Usage Recycled Process Water Filtration
High Light

Automatic Self Cleaning Water Filter DN600


Process Water Self Cleaning Filters 1.0MPa


Automatic Self Cleaning Strainer

Leave a Message
Product Description

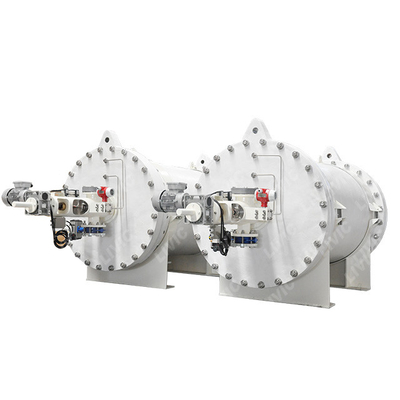

Process Water Automatic Self Cleaning Filters For Waste Water Filtration



GFK Series automatic self-cleaning filter is the high performance filter particularly designed for fine water filtration.The superior filtration rating is 15 to 300μm. Highly efficient back-flushing secures normal working even for the turbid raw water.The water flows into the screen inside from the filter inlet, passes the screen and flows out from the outlet.The particles are blocked by the screen mesh. When the filtration pressure drop rises to the preset value, the control system triggers the cleaning sequeces. The back-flushing nozzles driven by the motor moves helically and clean the inner screen surface. After all the screen area is scanned and cleaned by the suction nozzles, one back-flushing cycle is completed. During back-flushing, the filtration goes on and only very low flowrate fluctuation and outlet pressure decrease happens.


High Flow Rate, Easy to back-flush, Accurate Apertures

Efficient and Uniform Screen Cleaning Performance

Contact Suction Nozzles Closer Cleaner



Standard Design Pressure 1.0MPa
Min. Working Pressure 0.2MPa, 0.16MPa(with auxiliary back-flushing pump)
Flowrate Range 50-3000m³/h
Applicable Liquid Sea Water, Fresh Water, Other Raw Water
Back-flushing Liquid Filtered Clean Water
Filtration Degree. 15~300μm
Working Principle Single Filter Continuous Filtration,Automatic Back-flushing
Design Temperature H0-50℃
Back-flushing Cycle Differential Pressure 50KPa and Time
Differential Pressure Instrument Intelligent Differential Pressure Transmitter
Inlet and Outlet Size DN80-DN600
Installation Direction Horizontal or Vertical
Inlet and Outlet Standard ANSI Flange CLASS150/DIN Flange PN10
Housing Wet Part Material CS/316L/2205 Duplex SS

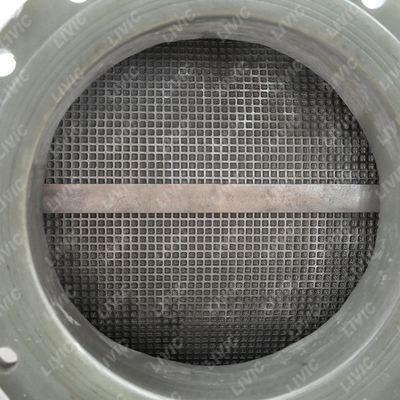

Filter Screen Material 316L/904L
Internal Part Material PTFE/POM/316L
Carbon Steel Anticorrosion Rubber Lining/ Rilsan Coating
Sealing Material NBR

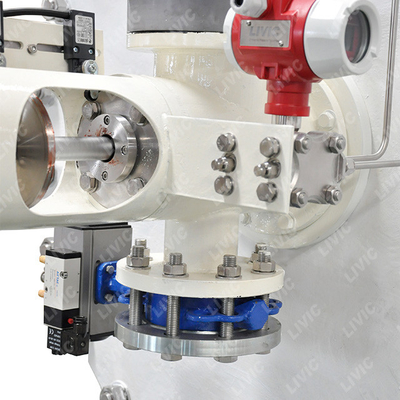

Back-flushing Valve Pneumatic Butterfly Valve
Facility Supply 380V/AC, 0.4-0.6MPa Clean and Dry Compressed Air
Custom-made Design Explosion Proof Design Involves Instruments and Control System




■ Applicable Fields: water treatment systems​, raw water treatment, water treatment systems, circulating cooling systems, steel, pulp and paper, mining, petrochemical, metal working, municipal facilities and etc..


■ Applicable Liquid: reservoir water, groundwater, seawater, seawater,lake water,  pond water

, cooling water, chilled water, high and low pressure spray water, injection water, heat exchanging water, seal water, bearing cooling water, well water, circulating process water , machining coolant, cleaning agent, cleaning water.
