Filter Automatic Self Cleaning Strainer For Cooling Recycled Process Water Filtration
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xHOUSING WET PART MATERIAL | Carbon Steel /2205 Duplex SS/316L | FILTRATION DEGREE | From 15 To 50 Micron |
---|---|---|---|
APPLICABLE LIQUID | Sea Water, Fresh Water And Other Raw Water | FLOWRATE RANGE | 800-5000L/min |
INLET & OUTLET SIZE | From DN80 To DN600 | STANDARD DESIGN PRESSURE | 10 Bar |
Product Name | Automatic Scanning Self Cleaning Filter | Usage | For Kinds Of Water Filtration |
High Light | Duplex Steel Automatic Self cleaning Strainer,Automatic Self cleaning Strainer 5000L/min,SS316L Automatic Self cleaning Strainer |

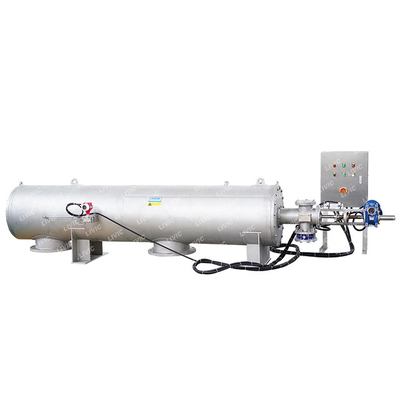

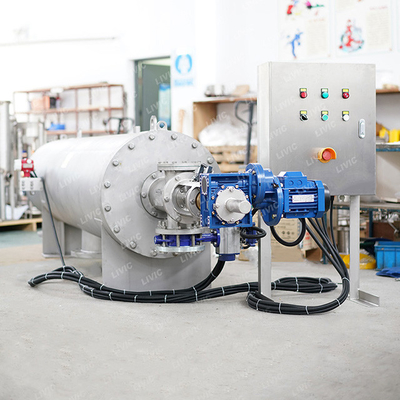

Self Cleaning Filter Automatic Self cleaning Strainer For Cooling Recycled Process Water Filtration
Automatic self-cleaning filter is the particularly designed high performance filter by LIVIC for the water fine filtration. The automatic self-cleaning filter can efficiently remove the suspended solids, sediment and planktons from the water. The automatic self-cleaning filter cleans and regenerates the filter screen with the most efficient and stable suction nozzle back-flushing principle.
It can keep efficient self-cleaning performance and work continuously with one single filter. The back-flushing does not interrupt the water filtration process. Applied with LIVIC innovative design, GFK self-cleaning filter is universal for various water types including the raw water. It can run for a long-term without malfunction and maintenance.
GFK series self-cleaning filter reaches the international first-class level in the product design standard, running performance and quality, which meets the most demanding requirement of end users.
The water flows into the screen inside from the filter inlet, gets through the screen and flows out from the outlet. The impurity particles are blocked by the screen mesh. After the accumulation of more particles, the filtration pressure drop rises to preset value (usually 50 KPa).
The control system triggers the cleaning sequences. Open the back-flushing valve A and the auxiliary back-flushing pump. The gear motor drives the reciprocating scanner at the same time.
The dual-channel back-flushing tube moves helically and cleans the screen inside with suction nozzles. Because the back-flushing valve A opens, the differential pressure happens in the postion where group A nozzles contact the screen. The differential pressure = outlet pressure - back-flushing outlet A pressure.
Specifications:
Standard Design Pressure | 1.0MPa |
Min. Working Pressure | 0.2MPa, 0.16MPa(with auxiliary back-flushing pump) |
Flowrate Range | 50-3000m³/h |
Applicable Liquid | Sea Water, Fresh Water, Other Raw Water |
Back-flushing Liquid | Filtered Clean Water |
Filtration Degree. | 15~300μm |
Working Principle | Single Filter Continuous Filtration,Automatic Back-flushing |
Design Temperature | H0-50℃ |
Back-flushing Cycle | Differential Pressure 50KPa and Time |
Differential Pressure Instrument | Intelligent Differential Pressure Transmitter |
Inlet and Outlet Size | DN80-DN600 |
Installation Direction | Horizontal or Vertical |
Inlet and Outlet Standard | ANSI Flange CLASS150/DIN Flange PN10 |
Housing Wet Part Material | CS/316L/2205 Duplex SS |
Filter Screen Material | 316L/904L |
Internal Part Material | PTFE/POM/316L |
Carbon Steel Anticorrosion | Rubber Lining/ Rilsan Coating |
Sealing Material | NBR |
Back-flushing Valve | Pneumatic Butterfly Valve |
Facility Supply | 380V/AC, 0.4-0.6MPa Clean and Dry Compressed Air |
Custom-made Design | Explosion Proof Design Involves Instruments and Control System |
Applications:
■ Applicable Fields: water treatment systems,groundwater, raw water treatment, water treatment systems, circulating cooling systems, steel, pulp and paper, groundwater,mining, petrochemical, metal working, municipal facilities and etc..
The pplicable Liquid including the seawater,groundwater, seawater,lake water, pond water, cooling water, groundwater, groundwater, chilled water, high and low pressure spray water, injection water,groundwater,reservoir water,heat exchanging water, seal water, bearing cooling water, well water, circulating process water , machining coolant, cleaning agent, cleaning water.
