SS 316L Magnetic Trap Filter For Lithium Battery Slurry Filltration MGP Series
| Place of Origin | Shanghai |
|---|---|
| Brand Name | LIVIC |
| Certification | ISO9001 and SGS |
| Model Number | MGP |
| Minimum Order Quantity | 1 pc |
| Price | Negotiation |
| Packaging Details | Polywood |
| Delivery Time | 60 work days |
| Supply Ability | 300pcs per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | Stainless Steel 304, 316L | Magnetic Field Peak Value | 12000 Guass |
|---|---|---|---|
| Temperature | 80℃ And Higher Temperature Available | Design Pressure | 6 Bar, 10 Bar |
| Inlet And Outlet Diameter | From DN25 To DN500 | ||
| High Light | SS 316L Magnetic Trap Filter,Lithium Battery Slurry Filtration Magnetic Trap,12000 Guass Magnetic Trap |
||
Product Description

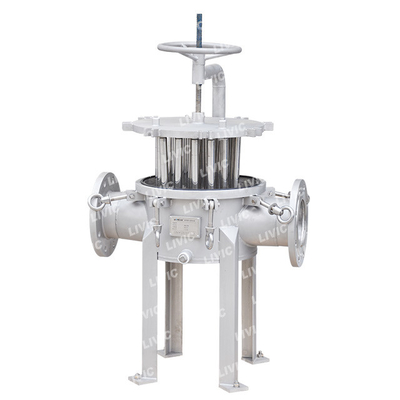

Magnetic Trap Filter For Lithium Battery Slurry Filltration MGP Series
Description
Magnetic filter is a method that removes iron particles from products that are in liquid or slurry form. It’s a method that can be used in nearly any environment where ferrous, para-magnetic, and grinding medium contamination is an issue. Magnetic filters make this type of filtration easy and effective. In fact, when the filters become full, they can simply be cleaned and reused.
The main part of our magnetic strainer are several tube magnets with standard diameter of 25mm mounted on the lid base. When the fluid passes through these magnetic tubes, the iron impurities will be firmly absorbed on the surface of them to achieve iron particle separating.
Specifications:
| MG Filter Sub-series | MGS | MGP |
| Standard Design Pressure | 0.6MPa/1.0MPa | |
| Highest Design Temperature | 0-200°C | |
| Main Inlet and Outlet Size | DN25-DN100 | |
| Main Inlet and Outlet Flange Standard | HG20592-2009( standard, compatible with DIN) HG20615-2009(compatible with ANSI B16.5) |
|
| Housing Wet Part Material | 304/316L | |
Applications:
■ Applicable industries: Food and beverage, machining, pharmaceutical, chemical, ceramics, pulp and paper, etc.
■ Typical applicable liquid: Liquids containing trace iron particles
■ Filtration function: Trap iron particles, purify liquids, protect key equipment
Technical Features and Advantages
■ The liquid flows around the strong intensive magnetic field formed by the magnetic bar array. Complete touch and many times trapping increase the removal efficiency.
■ Optimized magnetic field, powerful trapping strength, trap more iron particles, reduce the maintenance frequency and labor cost.
■ Max surface magnetic field strength is larger than 12000 gauss and 30% stronger than similar products.
■ Extreme low attenuation, super long service life, 1% attenuation for 10 years
■ No energy comsuption, no active part, low running cost, easy maintenance
■ Standard design tempreture, lower than 60℃, higher temperature (200℃) available
