200°C Magnetic Trap For Purify Liquids Filtration 304 / 316L Permanent Magnetic

Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001/SGS
Model Number MG
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Polywood
Delivery Time 60 work days
Supply Ability 300pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Housing Material SUS316L,304 Magnetic Field Peak Value 12000 GS Or Higher
Temperature 80℃, Higher Temperature Available Design Pressure 600kpa,1000kpa
Inlet And Outlet Diameter DN25 To DN600 Or Custom Magnetic Permanent Neodymium Magnet
High Light

Permanent Magnetic Trap


316L Magnetic Trap


1000 kpa Magnetic Trap

Leave a Message
Product Description

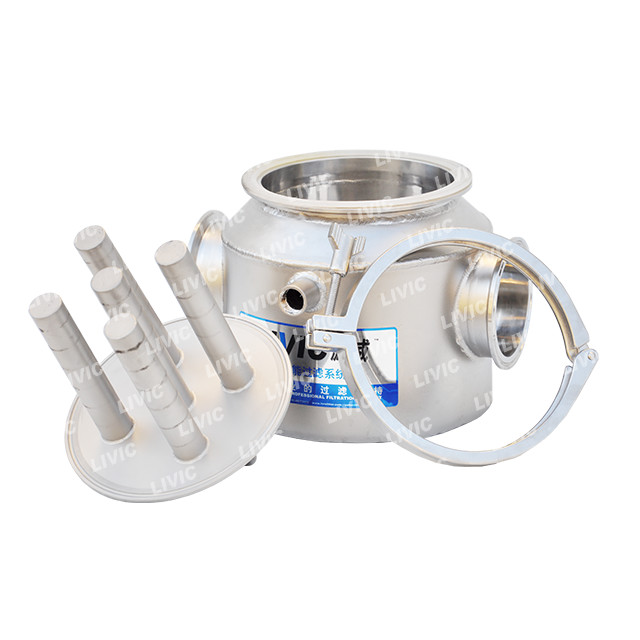

Magnetic Trap for purify liquids Filtration 304 / 316L Permanent Magnetic





Magnetic Liquid Traps or Magnetic Liquid Filters are designed for liquid or semi-liquid flow systems to remove ferrous contamination from liquid with different viscosity level. They preserve product purity by removing small contaminants,provide magnetic protection for liquid lines and processing equipments. Magnetic Bars containing high intensity rare earth neodymium iron boron magnets are housed within a 304 stainless steel vessel. Magnetic configuration ensures maximum exposure of contamination to the high intensity tubes without impeding liquid flow.



MG Filter Sub-series MGS MGP
Standard Design Pressure 0.6MPa/1.0MPa
Highest Design Temperature 0-200°C
Main Inlet and Outlet Size DN25-DN100
Main Inlet and Outlet Flange Standard HG20592-2009( standard, compatible with DIN)
HG20615-2009(compatible with ANSI B16.5)
Housing Wet Part Material 304/316L




■ Applicable industries: Food and beverage, machining, pharmaceutical, chemical, ceramics, pulp and paper, etc.
■ Typical applicable liquid: Liquids containing trace iron particles
■ Filtration function: Trap iron particles, purify liquids, protect key equipment


Technical Features and Advantages

■ The liquid flows around the strong intensive magnetic field formed by the magnetic bar array. Complete touch and many times trapping increase the removal efficiency.

■ Optimized magnetic field, powerful trapping strength, trap more iron particles, reduce the maintenance frequency and labor cost.

■ Max surface magnetic field strength is larger than 12000 gauss and 30% stronger than similar products.

■ Extreme low attenuation, super long service life, 1% attenuation for 10 years

■ No energy comsuption, no active part, low running cost, easy maintenance

■ Standard design tempreture, lower than 60℃, higher temperature (200℃) available

200°C Magnetic Trap For Purify Liquids Filtration 304 / 316L Permanent Magnetic 0
