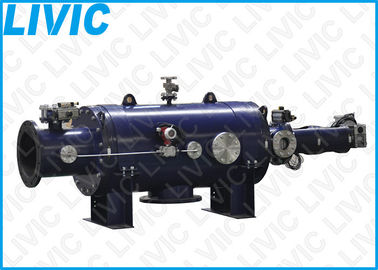

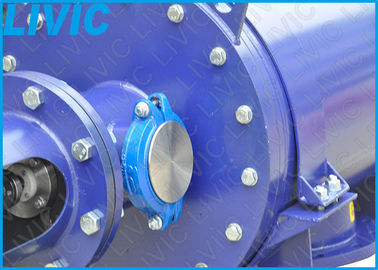

Epoxy Painted Automatic Self Cleaning Filter Carbon Steel For Cooling Water
|HOUSING WET PART MATERIAL||CS/316L/2205 Duplex SS||FILTRATION DEGREE||15-300 Micron|
|APPLICABLE LIQUID||Sea Water, Fresh Water, Other Raw Water||FLOWRATE RANGE||50-3000m³/h|
|INLET & OUTLET SIZE||DN80-DN600||STANDARD DESIGN PRESSURE||1.0MPa|
Automatic Water Filter,
Auto Self Cleaning Filter,
Carbon Steel Self Cleaning Filter

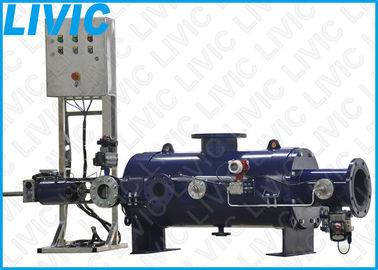

Cooling Water Automatic Self Cleaning Filter,GFK Series
GFK series automatic self-cleaning filter is the particularly designed high performance filter by LIVIC for the cooling water fine filtration. The automatic self-cleaning filter can efficiently remove the suspended solids, sediment and planktons from the cooling water. It greatly improves the cooling efficiency and extends the cooling water service life. The automatic self-cleaning filter cleans and regenerates the filter screen with the most efficient and stable suction nozzle back-flushing principle. It can keep efficient self-cleaning performance and work continuously with one single filter. The back-flushing does not interrupt the water filtration process. Applied with LIVIC innovative design, GFK self-cleaning filter is universal for various water types including the raw water. It can run for a long-term without malfunction and maintenance. GFK series self-cleaning filter reaches the international first-class level in the product design standard, running performance and quality, which meets the most demanding requirement of end users.
The water flows into the screen inside from the filter inlet, gets through the screen and flows out from the outlet. The impurity particles are blocked by the screen mesh. After the accumulation of more particles, the filtration pressure drop rises to preset value (usually 50 KPa). The control system triggers the cleaning sequences. Open the back-flushing valve A and the auxiliary back-flushing pump. The gear motor drives the reciprocating scanner at the same time. The dual-channel back-flushing tube moves helically and cleans the screen inside with suction nozzles. Because the back-flushing valve A opens, the differential pressure happens in the postion where group A nozzles contact the screen. The differential pressure = outlet pressure - back-flushing outlet A pressure. The outside filtrate reverse flow passes the screen and injects into the group A suction nozzle inside. The impurities and particles on the inner surface are flushed out by the reverse flow and the filter screen filtration capacity is regenerated. After all the screen area is scanned and cleaned by the suction nozzles, one back-flushing cycle is completed. During back-flushing, the filtration goes on and Only very low fluctuation of flow rate and outlet pressure happens.
Start the large particle back-flushing function by time mode after running for a period. Keep back-flushing valve A closed and open back-flushing valve B. The gear motor drives the group B suction nozzles to back-flush out the large particles that cannot be removed by the group A suction nozzles, which will avoid the malfunction resulting from accumulated large particles for a long time.
GFK series automatic self-cleaning filter is the efficient filtration solution for the cooling water system.
|Standard Design Pressure||1.0MPa|
|Min. Working Pressure||0.2MPa, 0.16MPa(with auxiliary back-flushing pump)|
|Applicable Liquid||Sea Water, Fresh Water, Other Raw Water|
|Back-flushing Liquid||Filtered Clean Water|
|Working Principle||Single Filter Continuous Filtration,Automatic Back-flushing|
|Back-flushing Cycle||Differential Pressure 50KPa and Time|
|Differential Pressure Instrument||Intelligent Differential Pressure Transmitter|
|Inlet and Outlet Size||DN80-DN600|
|Installation Direction||Horizontal or Vertical|
|Inlet and Outlet Standard||ANSI Flange CLASS150/DIN Flange PN10|
|Housing Wet Part Material||CS/316L/2205 Duplex SS|
|Filter Screen Material||316L/904L|
|Internal Part Material||PTFE/POM/316L|
|Carbon Steel Anticorrosion||Rubber Lining/ Rilsan Coating|
|Back-flushing Valve||Pneumatic Butterfly Valve|
|Facility Supply||380V/AC, 0.4-0.6MPa Clean and Dry Compressed Air|
|Custom-made Design||Explosion Proof Design Involves Instruments and Control System|
■ Applicable Fields: water treatment systems, raw water treatment, water treatment systems, circulating cooling systems, steel, pulp and paper, mining, petrochemical, metal working, municipal facilities and etc..
■ Applicable Liquid: seawater, groundwater, seawater, lake water, reservoir water, pond water, cooling water, chilled water, high and low pressure spray water, injection water, heat exchanging water, seal water, bearing cooling water, well water, circulating process water , machining coolant, cleaning agent, cleaning water.
