Polyline PP Plastic Water Filter Housing Design For Chemical Filtration SGS Standard

  • Polyline PP Plastic Water Filter Housing Design For Chemical Filtration SGS Standard
  • Polyline PP Plastic Water Filter Housing Design For Chemical Filtration SGS Standard
  • Polyline PP Plastic Water Filter Housing Design For Chemical Filtration SGS Standard
  • Polyline PP Plastic Water Filter Housing Design For Chemical Filtration SGS Standard
Place of Origin China
Brand Name LIVIC
Certification ISO9001/SGS
Model Number BFP
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details wooden case
Delivery Time 30 days after received your payment
Payment Terms T/T
Supply Ability 800 pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Bag Filter Housing Application Chemical Industry，Environmental Protection
Style Vertical Motive Force Pressure
Type Manual Polypropene Filter Brand LIVIC
Standard SGS Origin Shanghai
High Light

Water Filter Housing

,

Stainless Filter Housing
Leave a Message
Product Description

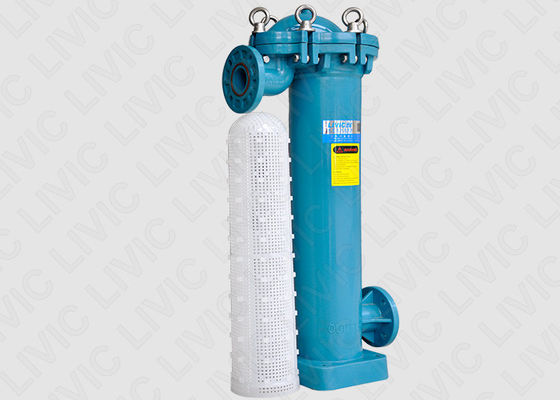

Polyline PP Plastic Water Filter Housing Designed For Sea Water Brackish Water Filtration





Description



Rugged, all plastic industrial filter housings with a choice of PPL or PVDF construction to meet the needs of all ultra-pure or corrosive liquid filtration applications. BFT Series Single Bag Filter (BFT filter for short ) features over-the-top flowing-in design. It is the single bag filter with the best structure. Its absolute bag sealing design makes it ideal for the absolute high filtration degree applications. The Solid structure delivers high safety and durability. The BFT series bag filter is designed for the most demanding applications.



Specifications:



Material of Construction Glass reinforced polypropylene, single and double length; PVDF, double length
Piping Connections 2" NPT threaded, PPL, 150# ANSI flange optional; 2”, PVDF, 150# ANSI flange
Drain Connections 2" NPT threaded, PPL, 150# ANSI flange optional; 2”, PVDF, 150# ANSI flange
Bag Size #01 and #02
Pressure Rating PPL, 150 psi; PVDF, 100 psi
Seals Viton, EPDM optional
Flow Rate* Single length, 50 gpm with clean bag; double length, 100 gpm with clean bag



Applications:

  • Food and Beverage
  • Chemical Processing
  • Paints, Inks, Resins and Coatings
  • Electronics
  • Petrochemicals
  • Municipal Water Treatment
  • Industrial Water Treatment
  • Pulp and Paper
  • Pharmaceutical
  • Lubricants, Metalworking Fluids
  • Solvents



TECHNICAL FEATURES AND ADVANTAGES

  • Sizes for one #01 or #02 filter bag
  • Viton seals standard
  • 2" NPT threaded connections
  • Maximum operating pressure of 150 psi at 70°F
  • Hand removable, spin off cover
  • Integral installation flange
  • Polypropylene plastic construction
  • Plastic vent valve on cover with gauge tap
  • Corrosion-resistant exterior, no coatings required
  • Duplex model for continuous flow applications
