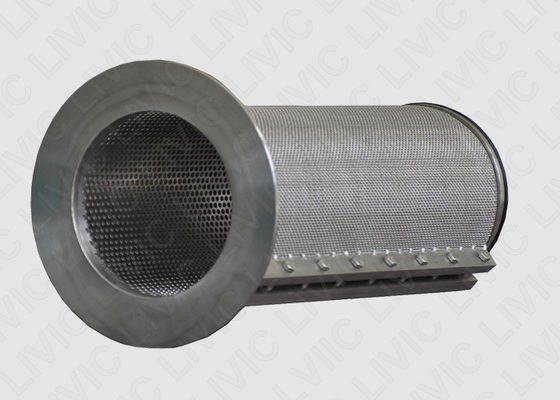

316LCS / 304 Automatic Backwash Filter High Dirty Resistance For Squirt Water Treatment

Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001/SGS
Model Number UFS
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Polywood
Delivery Time 6-8weeks
Supply Ability 100pcs per year
Product Details
Housing Wet Part Material 316LCS/304 Filtration Rating 3-500micron
Viscosity 1-200000cp Temperature Two Hundred Degree Celsius
Design Pressure 10 Ban Cleaning Start Mode Time Or Pressure Drop
High Light

Backwash Water Filter


Automatic Water Filters


Squirt Water Treatment Backwash Filter

Leave a Message
Product Description

Viscous Automatic Backwash Filter, UFS Seires for Squirt Water Treatment





UFS Series Viscous Back-flushing Filter (UFS Filter for short), is the breakthrough innovative product in the field of precision self-cleaning filtration, world leading, based on a unique sealed back-flushing technology. It can forcefully flush impurities off the filter screen. UFS filter has the highly efficient back-flushing, high filtration rating, high flowrate and high dirty resistance capacity. The maximum filtration rating can up to 3μm, is capable to the filtration for high-value viscous liquids. UFS Filter can even work normally at poor cleanness condition.

Ordinary back-flushing self-cleaning filter gets clogged quickly when filtering water of poor cleanness at rating down to 100μm, it frequently back-flushes for a long time and wastes lots of liquid. So that customer has to select the larger filter or open the filter to cleaning the screen manually or even select low filtration ratings. While UFS Filter can also works well in such applications.

By the world leading technology advantages and efficient filtration performance, UFS Filter has become an ideal upgrading solution in the fields where ordinary back-flushing self-cleaning filters do not work well. Meanwhile, it is replacing bag filter and cartridge filter in the high precision filtration field.




SF Filter Sub-series UFS150 UFS250 UFS400 UFS650 UFS1000 UFS1500
Filter Element Metal felt, woven metal mesh, etc.
Standard Design Pressure 1.0MPa
Temperature (℃) 200
Filtration Rating(μm) 3-500
Filter Area(m2) 0.05-33
Applicable Viscosity(cp) 1-300
Housing Wet Part Material 304/316L /CS




■ Applicable industries: petro-chemical, Fine Chemical, etc.


■ Typical applicable liquid: Diesel in petrochemical industry, gasoline, naphtha, FCC slurry oil, wox oil, VGO etc., viscose, polymers, other solvents, acid and alkali liquid filtration etc.316LCS / 304 Automatic Backwash Filter High Dirty Resistance For Squirt Water Treatment 0
