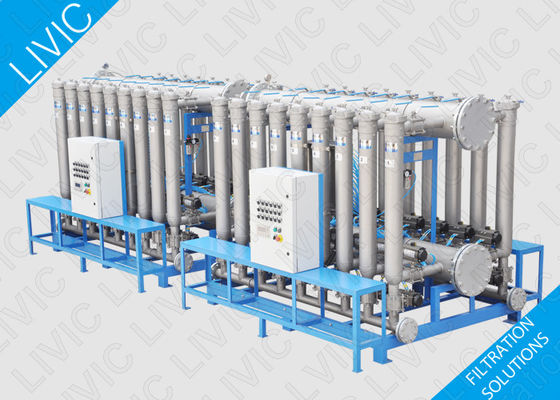

Metal Backwashing Tubular Filter MF Series 1.0 MPa for Spray Nozzle Protection

Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001/SGS
Model Number MF
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Polywood
Delivery Time 60 work days
Supply Ability 100pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Housing Material 316L, CS, SS304 Number Of Filter Element 3-24
Filtration Ratings 0.2-3mm Viscosity 1-50cp
Design Pressure 1.0MPa Design Temperature 250℃
High Light

Tubular Membrane Filtration


Industrial Water Filter


Metal Backwashing Tubular Filter

Leave a Message
Product Description

Metal Backwashing Tubular Filter MF Seires for Spray Nozzle Protection





MF Series modular self-cleaning filter (MF Filter for short) is the automatic filtration system designed by LIVIC according to the modular design concept. It has the high reliability and flexibility for expanding. It has the following features: running automatically, very durable, no manual cleaning, very easy to open for maintenance, with unique V-SLOT filter element, completely back-flushed and less back-flushing discharging liquid. MF filter can purify the liquid and protect the downstream key equipments. It is designed and manufactured by the high performance, high quality, high reliability standard of LIVIC and has the world class quality.


MFR filter and MFV filter are applied between the filtration degree from 20-500 micron, for the water and low viscous liquids. They are good at filtering the micro fibers, oil-mud and soft impurities, which ordinary self-cleaning filters can hardly work. MFT filter and MFG filter , as the manual filters, are only for liquids with less impurity content and easy to back-flush. They are for applications with less back-flushing frequence. LIVIC is the world leading self-cleaning filter manufacturer with the full series self-cleaning filters, which can meet the customers' various filtration demands.




MF Filter Sub-series

MFR Filter

MFV Filter

Back-Flushing Fluid

clean filtrate

external liquid or gas

Applicable Viscosity

< 50cps


Contaminant Content


Inlet Pressure Requirement


on special requirement

Installation Position

behind the pump

before or behind the pump

Filtration Rating



Standard Design Pressure


Highest Design Temperature

0-250°C(determined by the seals)

Filter Module Quantity Per Single System


Inlet and Outlet Valve Size of the Filter Module

DN50, max flowrate 25m3/h; DN65,max flowrate 42m3/h

Back-flushing Valve Size

DN 50, DN 65

Filter Area of a Single Filter Module

C Type, 2670 c㎡, K Type, 3760 c㎡

Back-flushing Differential Pressure


Warning Differential Pressure


Main Inlet and Outlet Pipeline Size


Main Inlet and Outlet Flange Type

Lap-joint flange, hot galvanized flange plate

Main Inlet and Outlet Flange Standard

HG20592-2009( standard, compatible with DIN)
HG20615-2009(compatible with ANSI B16.5)

Filter Element Type and Material

V-SLOT slotted metal filter element, material 304/316L

Housing Wet Part Material


Housing Sealing Material


Fluid Control Valve

Pneumatic ball valve, protection class IP65,valve seat material PTFE

Facility Supply Requirement

220V AC, 0.4-0.6 MPa clean & dry compressed air

Control System

Siemens PLC, working voltage 24V, control box protection class IP55

D.P. Instrument

D.P. Switch(Standard) or D.P. Transmitter



■ Applicable Industries: raw water treatment, water treatment system, cooling system, power generation, steel mill, pulp and paper, mining, petrol-chemical, municipal facility, etc.

■ Applicable liquid types: raw water, process water, clean white water, super clean water, circulating cooling water, high pressure spraying water, low pressure spraying water, sealing water, squirt cut water, etc.. Various raw oils like diesel, gasoline, naphtha, residual oil; hot rolling coolant or cold rolling coolant in the steel mill


Technical Features and Advantages


1.Automatic operation

2. Free of artificial cleaning

3.Lower pressure drop

4.Save resource

5.Use high performance V-slot elements

6.Backwash completely

7.Less consume water


​Typical Installation Diagram
