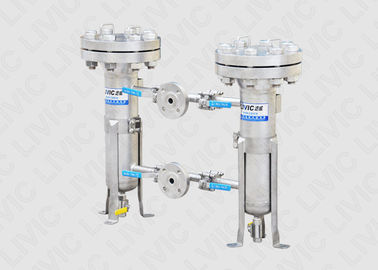

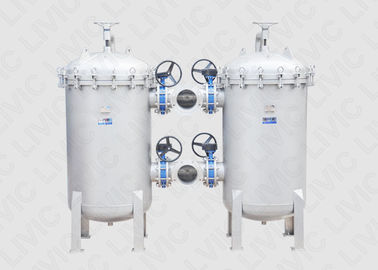

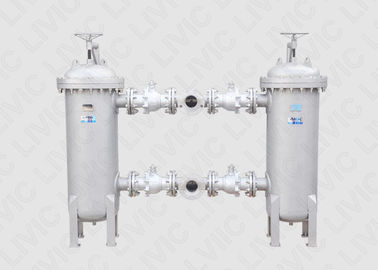

0.05 - 33㎡ Basket Filter Housing Industrial Pipeline Filter Strainer For Fine Chemicals
|Housing Material||316L, CS,304||Filtration Rating||50-8000micron|
|Viscosity||1-30000cp||Number Of Basket||1-24|
|Design Pressure||0.6MPa, 1.0MPa||Filter Area||0.05-33㎡|
Stainless Steel Basket Filter,
Water Filter Housing
Industrial Pipeline Filter Strainer Basket Filter Housing
SF Series basket filter (SF filter for short) is the necessary equipment on the pipeline, as the safe-guard filter, removes large contaminant particles and protect key equipments such as pumps, nozzles, heat exchangers and valves. It can obviously extend the service life of key equipments, improve operational efficiency and avoid the risk of costly system downtime. SF filter also works well as the direct large particle filter. The metal filter basket is reusable by cleaning and cost less filter media consumption. The DuraSEP and PerSEP filter baskets especially designed for SF filter are durable and highly reliable. SF Filter can be installed onto pipelines from 1 to 48 inches. The standard design pressure is 0.6MPa and 1.0MPa. Higher custom-made design pressure is available.
SF filter has 5 sub-series: SFS series has single-basket configuration, quick-open design, suitable for most of all application at low flowrate, flexible inlet and outlet layout are available; SFS series also has single-basket configuration, flanged seal, bolts and nuts fastening, suitable for high pressure applications. SFM series has multi-basket configuration, quick-open design, suitable for high flowrate application, and with advantages of compact construction, large filter area, flexible nozzle layout and convenient changeout and cleaning of the basket. SFV series also has multi-basket configuration, flanged seal, bolts and nuts fastening, suitable for high pressure applications.SFZ series has single-basket configuration, the inlet and outlet are on the same horizontal centerline, which requires no elbow pipe Socket.
|SF Filter Sub-series||SFS||SFF||SFM||SFV||SFZ|
|Optional Filter Basket||DuraSEP filter basket, PerSEP filter basket|
|Standard Design Pressure||0.6MPa/1.0MPa|
|Number of Basket||1-24|
|Housing Wet Part Material||304/316L /CS|
■ Applicable industries: Fine chemicals, water treatment systems, pulp and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.
■ Applicable liquids: Wide applicability, all liquids contained micro-impurities
