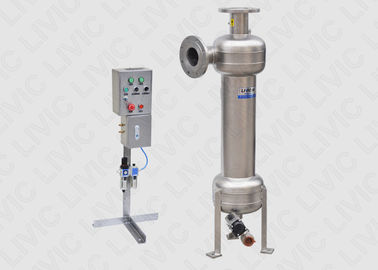

304 / 316L Solid Liquid Separator High Performance VS Series For Sewage Treatment

Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001/SGS
Model Number VS
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Polywood
Delivery Time 30 days
Supply Ability 400pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Housing Material 304, 316L Flowrate 4-1145m³/h
Viscosity 1-40cp Design Temperature 200℃
Inlet&outlet Size DN25-DN300 Design Pressure 1.0MPa
High Light

Solid Liquid Separation


Liquid Solid Filtration

Leave a Message
Product Description

High Efficiency Solid Liquid Separator for Industrial/Commercial Application​





VS Series Centrifugal Solid-liquid Separator (VS Separator for short) is widely used in the field of solid-liquid separation. It separates precipitable particles from liquids by centrifugal force by liquid rotation. The separation efficiency of VS Separator depends on the particle density and the liquid viscosity. Larger density of particles and lower viscosity of liquid, better separation efficiency is available. For high density particles larger than 40μm, its separation efficiency can exceed 98%. VS Separator can separate solid particles as small as 5μm. When separating, VS Separator requires no moving parts and no cleaning or replacing of filter elements, so it keeps running year after year with no maintenance. The highly efficiency, consistent performance and economic running cost make it an ideal solution for solid-liquid separation process.




Inlet/Outlet Sizes DN25-150
Flowrate(m3/h) 7-307
Temperature (℃) 200
Design Pressure(MPa) 1.0
Pressure Drop(MPa) 0.02-0.07
Applicable Viscosity(cp) 1-40
Housing Wet Part Material 304/316L




■ Applicable industries: Water treatment, plup and paper, petro-chemical, metal processing, chemical and biological pharmaceuticals etc.
■ Typical applicable liquid: Raw water (river water, seawater, reservoir water, groundwater), sewage treatment, circulating water, machine coolants, cleaning agents etc.
