High Efficiency Liquid - Solid Separators VS Series For Industrial SGS Approved
| Place of Origin | Shanghai |
|---|---|
| Brand Name | LIVIC |
| Certification | ISO9001/SGS |
| Model Number | VS |
| Minimum Order Quantity | 1 pc |
| Price | Negotiation |
| Packaging Details | Polywood |
| Delivery Time | 30 days |
| Supply Ability | 400pcs per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing Material | 304, 316L | Flowrate | 4-1145m³/h |
|---|---|---|---|
| Viscosity | 1-40cp | Design Temperature | 200℃ |
| Inlet&outlet Size | DN25-DN300 | Design Pressure | 1.0MPa |
| High Light | Solid Liquid Separation,Liquid Solid Separator |
||
Product Description

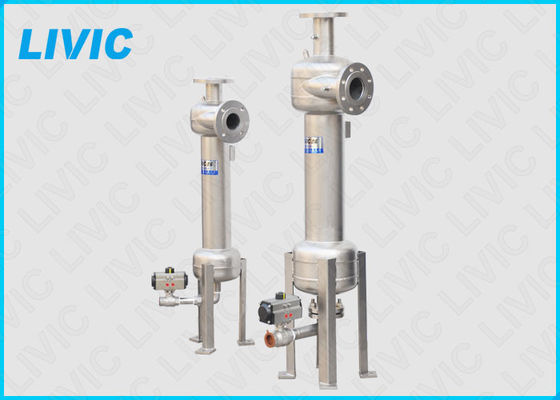

High Efficiency Solid Liquid Separator for Industrial/Commercial Application
Description
VS Series Centrifugal Solid-liquid Separator (VS Separator for short) is widely used in the field of solid-liquid separation. It separates precipitable particles from liquids by centrifugal force by liquid rotation. The separation efficiency of VS Separator depends on the particle density and the liquid viscosity. Larger density of particles and lower viscosity of liquid, better separation efficiency is available. For high density particles larger than 40μm, its separation efficiency can exceed 98%. VS Separator can separate solid particles as small as 5μm. When separating, VS Separator requires no moving parts and no cleaning or replacing of filter elements, so it keeps running year after year with no maintenance. The highly efficiency, consistent performance and economic running cost make it an ideal solution for solid-liquid separation process.
Specifications:
| Inlet/Outlet Sizes | DN25-150 |
| Flowrate(m3/h) | 7-307 |
| Temperature (℃) | 200 |
| Design Pressure(MPa) | 1．0 |
| Pressure Drop(MPa) | 0.02-0.07 |
| Applicable Viscosity(cp) | 1-40 |
| Housing Wet Part Material | 304/316L |
Applications:
■ Applicable industries: Water treatment, plup and paper, petro-chemical, metal processing, chemical and biological pharmaceuticals etc.
■ Typical applicable liquid: Raw water (river water, seawater, reservoir water, groundwater), sewage treatment, circulating water, machine coolants, cleaning agents etc.
Liquid Solid Separators offer effective protection for heat exchangers against fouling. As a result:
- Maintain design efficiencies for better heat transfer rates
- Reduce maintenance frequency for heat exchanger equipment
- Remove suspended grit and scale
