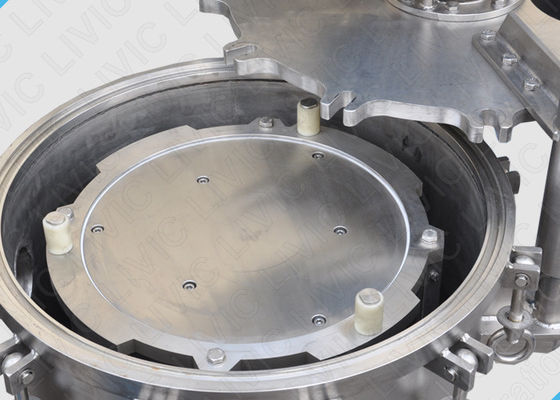

Automatic Water Filter For Petrochemical Industry , High Efficiency Crude Oil Filtration
|Design Pressure||1.0MPa||Filter Element||V-slot Series, POR Series|
Water Treatment Equipment,
Water Treatment Filters,
Petrochemical Industry Metal Edge Filter
Automatic Metal Edge Filter DFX Series for Amine and Polymer Filtration
Automatic Metal Edge Filter DFX Series (DFX Filter for short), is the high efficiency self-cleaning filter independently developed by LIVIC. DFX filter is used for filtering pigment and coating colour and is specially acclaimed for its high filter capacity when dealing with minimum processing volumes and the ability to maintain constant distribution in the filter area.
In addition to slotted screens, perforated baskets ensure optimal filter quality with a high degree of wear-resistance and a longer lasting scraper are also used as filter medium.
Removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line.DFX filter is designed for fine and accurate filtration ranging from 50-500micron. It can avoid extruding and breaking the impurities and is capable of the filtration for water and liquids of viscosity up to 800000cps. DFX filter is designed and manufactured per LIVIC’s high performance, high quality and high reliability standard. It is a world-class quality filter.
The conventional filters get clogged frequently when filtering the viscous liquid and removing the soft impurities. The customers have to select larger filters and clean the filter manually and frequently, which means expensive investment, hard work, valuable liquid loss. DFX filter solves these kinds of problems by its advanced self-cleaning. It always keeps the filter element clean, discharges waste liquid with high impurity concentration, reduces the liquid loss. When filtering the viscous liquids such as dirty water, adhesives, resins, polymers and oil, DFX filter works more efficiently. DFX filter is taking place fo vibrating screen, bag filter, basket filter and some kind of back-flushing filter by its technical advantages and low running cost.
|Applicable Liquid||water and viscous liquids(<800000cps), impurity<1000ppm|
|Standard Design Pressure||1.0 MPa, high design pressure available|
|Design Temperature||0-200°C( determined by the seal material)|
|Filter Area Per Filter||0.11m²-1.36m²|
|Cleaning Differential Pressure||0.05MPa|
|Differential Pressure Instrument||differential pressure tansmitter(DPT) or diffential pressure switch(DPS)|
|Gear Motor||180w, three phase, 380V, protection class IP 55; worm reduction gear|
|Inlet and Outlet Standard||flange, HG20592-2009(DIN compatible), HG20615-2009(ANSI B16.5 Compatible)|
|Filter Element Type||V-SLOT slotted metal filter element, 316L material|
|Housing Wet Part Material||304/316L/CS|
|Scraping Blade Material||304/316L|
|Housing Seal Material||NBR/VITION(FKM)|
|Discharging Valve||Pneumatic ball valve, protection class IP65|
|Supply Facility Requirement||380V AC,0.4-0.6MPa clean and dry compressed air|
Applicable Industry: oil and fats, water treatment, pulp and paper, petro-chemical, fine chemical
Applicable Liquids: wax, kerosene, monomer, polymer, citric acid, fermented broth, cosmetics, silicon solution, soap, sorbitol, steriodsugar, wet end additives, adhesives, inks, lubricating oil, coatings, resin, rubber, ethanol, miscella, diesel, etc.
It is necessry to install the 4mm protection strainer before the pump or DFX filter to remove the large particles or impurities like rope and yarn, which maybe block the filters's moving parts. LIVIC SF Series strainers have the full series, large filter area and easy operation. It is the ideal protection strainer for the metal edge filter.
