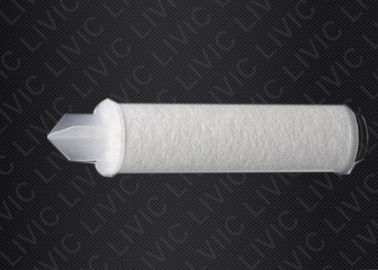

Cost Effective Melt Blown Filter Cartridge With PP Fiber 99.98% Filtration Area
Material | Polypropylene | Hardware | Polypropylene |
---|---|---|---|
O-RING | EPDM, Nitrile | Lengths | 10", 20", 30", 40" |
Filter Grades(μm) | 0.5-90 | Filtration Area | 99.98% |
High Light | Melt Blown Filter Cartridge,Depth Filter Cartridge |
Cost Effective and Efficient Melt Blown Filter Cartridge WellSEP Series
WellSEP Series filter cartridge using imported PP fiber membrane, its high flowrate and high dirty holding capacity feature makes it become the most economical filter cartridge, thus it is widely used in food and beverage industry of pre-filtration and precision filtration.
Product Specification Material of construction
◈Filter media: Polypropylene
◈Hardware: Polypropylene
◈Gaskets/O-Rings: Silicone elastomer EPDM, Nitrile
◈Sealing technology: Hot melt welded(Without binder)
Filter Cartridge Dimensions:
◈Outside Diameter: 63.5mm(2.5inch)
◈Lengths: 254mm(10inch), 508mm(20inch), 762mm(30inch), 1016mm(40inch)
Odering Information
WLSBPHC2SP-5 | ||||||
Table1 | Table2 | Table3 | Table4 | Table5 | Table6 | Table7 |
WLS | B | PHC | 2 | S | P | S |
Table1
Cartridge Seires | WLS |
Table 2
Code | End configurations |
B | 222 |
C | 226 |
Table 3
Cartridge material | Polypropylene(PHC) |
Table 4
Code | Cartridge Length |
1 | 10" |
2 | 20" |
3 | 30" |
4 | 40" |
Table 5
Code | O-ring Material |
V | Viton |
S | Silicone |
E | EPDM |
F | FEP encapsulated fluorocarbon elastomer |
Table 6
Code | Supporting Structure Material |
P | Polypropylene |
B | High Temperature Resistant |
D | 316L |
