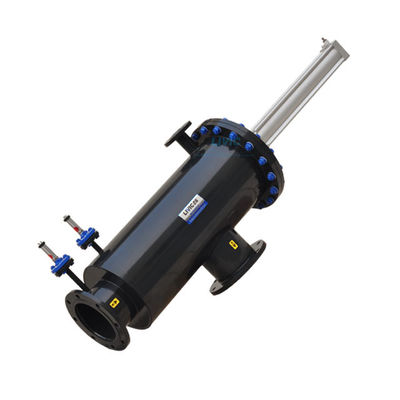

Pure Water Filter For Groundwater Filtration , Industrial Filtration Equipment Self Cleaning

Basic Information
Place of Origin: China
Brand Name: LIVIC
Certification: CE/ISO9001/SGS
Model Number: AF
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 60 days after received your payment
Payment Terms: T/T
Supply Ability: 200 pcs per year
Contact Now
Detail Information
Application: Sea Water, Cooling Water System Style: Vertical/Horizontal
Flowrate: 30-6500 M³/h Housing Material: 304/316L/duplex 2205/CS/FRP
Filtration Rating: 200-2000μm Standard Design Pressure: 1.0MPa

Product Description

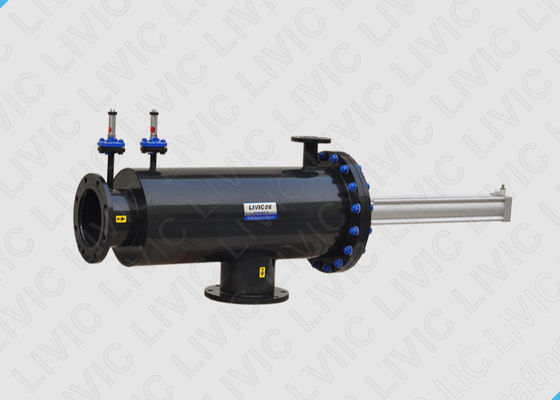

Automatic Self Cleaning Bernoulli Filter AF Seires for Groundwater and Freshwater Filtration





Description



The AF Series Bernoulli Self-cleaning Filter ( AF Filter for short ) is designed for automatic continuous filtration of water in the pressurized systems. AF Filter removes debris and particles from natural water sources such as sea water or river water. It is the ideal solution for the coarse water filtration ranging from 200μm to 2000μm. The AF filter works in Bernoulli Effect Principle, which leads to the simple and reliable filtering operation. It cleans the filter screen with surface cross flow and the back-flushing flow, which brings higher particle removal efficiency than the conventional brush filter. Many particles larger than the screen aperture are extruded through the screen when a brush filter is brushing and cleaning.

The filter screen of AF Bernoulli Filter is back-flushed d by the cleaning disc inside, which is mounted on the piston rod driven by the pneumatic cylinder. When the cleaning action triggered, the disc moves into the filter screen and the water passes through the gap between the disc and the filter screen inner surface. Flow velocity is accelerated when the water passses the gap, while the static pressure around the gap is reduced because of the Bernoulli Effect Principle. Around the disc edge, the vacuum effect of lower static pressure back-flushes the filter screen inside surface with the filtered water.



​Bernoulli Effect Cleaning Principle



The filter screen of AF Bernoulli Filter is back-flushed d by the cleaning disc inside, which is mounted on the piston rod driven by the pneumatic cylinder. When the cleaning action triggered, the disc moves into the filter screen and the water passes through the gap between the disc and the filter screen inner surface. Flow velocity is accelerated when the water passses the gap, while the static pressure around the gap is reduced because of the Bernoulli Effect Principle. Around the disc edge, the vacuum effect of lower static pressure back-flushes the filter screen inside surface with the filtered water.



Specifications:



Filter Main Type S Series G Series R Series
Control Mode D.P. and time mode
D.P. Instrument differential pressure transmitter
Filter Screen Material 304/316L/duplex 2205
Housing Material 304/316L/duplex 2205/CS
Flushing Valve Pneumatic butterfly valve
Power Supply 110V/220V/380V/440V AC
Largest Removable Particle 6mm
Housing Seal NBR
Compressed Air Supply 0.6Mpa clean and dry compressed air
Working Pressure 30Kpa
Filtration Rating 200-2000μm
Design Pressure (Mpa) 0.6/1.0/1.6/2.5
Design Temperature 80℃
Flowrate Range 30-6500 m3/h
Cleaning Pressure Drop 11Kpa
Inlet and Outlet Size DN65-D800
Piston Rod Material 316L
Piston Rod Seal PU



Applications:



• Biomass power stations                  • Coal power stations
• Gas power stations                         • Nuclear Power stations

• Surface water filtration                    • Industrial water filtration

• Cooling circuits/water treatment      • Ballast water fi ltration
• Marine                                             • Offshore

• FSRU                                              • REGAS


TECHNICAL FEATURES AND ADVANTAGES



■ Only two moving parts (the cleaning disc and the flushing valve )

■ Simple and reliable design structure, very easy to open for maintenance

■ Non-contact back-flushing cleaning, no particle larger than the screen aperture extruded through the filter screen

■ Consistant low pressure drop (<11Kpa) when the filter screen is clean or dirty

■ Very low working pressure requirement down to 30Kpa

■ Wide flowrate ranging from 30 to 3000 m3/ h with one single filter housing

■ No filtration interruption when back-flushing

■ Filtration degree ranges from 200μm to 2000μm

■ Flexible installation in the horizontal or vertical position

■ Equiped with differential pressure transmitter as d.p. instrument



AF Bernoulli Filter Fabrication And Assembly
