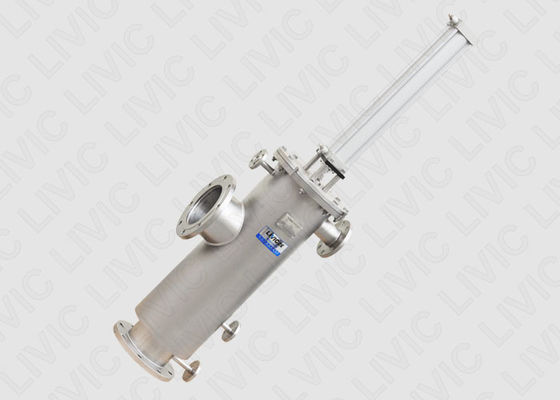

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

China Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges supplier
Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges supplier Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges supplier Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges supplier

Large Image :  Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Product Details:

Place of Origin: China
Brand Name: LIVIC
Certification: CE/ISO9001/SGS
Model Number: AF

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 60 days after received your payment
Payment Terms: T/T
Supply Ability: 200 pcs per year
Contact Now
Detailed Product Description
Application: Sea Water, Cooling Water System Style: Vertical/Horizontal
Flowrate: 30-6500 M³/h Housing Material: 304/316L/duplex 2205/CS/FRP
Filtration Rating: 200-2000μm Standard Design Pressure: 1.0MPa

Bernoulli Automatic Self Cleaning Filter for Pure Water Filtration





Description



The AF Series Bernoulli Self-cleaning Filter ( AF Filter for short ) is designed for automatic continuous filtration of water in the pressurized systems. The AF Series which does not only use the backflush effect caused by the simple pressure drop to outside lower pressure than the working pressure – the Bernoulli self cleaning backflush filter creates it ́s own backflush effect in the gap between the cleaning disc and the strainer insert. The insert can be made out of wedged wire profiles or a perforated plate. In some special applications also stainless steel or alloy mesh is used. The wedged wire filter screen can be made out of stainless steel SS 316 or materials like super duplex or duplex SS. If perforated plate is used for filter degrees over or 1 mm than as well stainless steel and also duplex Ss or titanium perforated plates are used. AF Filter removes debris and particles from natural water sources such as sea water or river water. It is the ideal solution for the coarse water filtration ranging from 200μm to 2000μm. The AF filter works in Bernoulli Effect Principle, which leads to the simple and reliable filtering operation. It cleans the filter screen with surface cross flow and the back-flushing flow, which brings higher particle removal efficiency than the conventional brush filter. Many particles larger than the screen aperture are extruded through the screen when a brush filter is brushing and cleaning.



The filter screen of AF Bernoulli Filter is back-flushed d by the cleaning disc inside, which is mounted on the piston rod driven by the pneumatic cylinder. When the cleaning action triggered, the disc moves into the filter screen and the water passes through the gap between the disc and the filter screen inner surface. Flow velocity is accelerated when the water passses the gap, while the static pressure around the gap is reduced because of the Bernoulli Effect Principle. Around the disc edge, the vacuum effect of lower static pressure back-flushes the filter screen inside surface with the filtered water.





Working Principle

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Lake Water Bernoulli Filter Continuous Operation 200μm to 2000μm Degree Ranges

Specifications:



Filter Main Type S Series G Series R Series
Control Mode D.P. and time mode
D.P. Instrument differential pressure transmitter
Filter Screen Material 304/316L/duplex 2205
Housing Material 304/316L/duplex 2205/CS
Flushing Valve Pneumatic butterfly valve
Power Supply 110V/220V/380V/440V AC
Largest Removable Particle 6mm
Housing Seal NBR
Compressed Air Supply 0.6Mpa clean and dry compressed air
Working Pressure 30Kpa
Filtration Rating 200-2000μm
Design Pressure (Mpa) 0.6/1.0/1.6/2.5
Design Temperature 80℃
Flowrate Range 30-6500 m3/h
Cleaning Pressure Drop 11Kpa
Inlet and Outlet Size DN65-D800
Piston Rod Material 316L
Piston Rod Seal PU



Benefits for the operator:



• Flow rates of up to 7,500 m3/h in a single unit
• Working pressure is possible from 0.3 bar to 25 bar
• Continuous operation
• Minimal differential pressure (Δp) during continuous operation (even below 0.1 bar)
• Short, adjustable flushing time and minimum pressure drop in the system during fl ushing
• Small variable flush rates
• Positive energy balance due to low differential pressure during fi ltration



Applications:



Typical Applications water treatment prefiltration, circulating cooling system, heat exchanger protection, spraying nozzle protection, ballast water treatment system, ultrafiltration membrane protection

Applicable Liquids underground water, sea water, lake water, river water, circulating cooling water, sewage water, process water, cleaning water



TECHNICAL FEATURES AND ADVANTAGES



Only two moving parts (the cleaning disc and the flushing valve )

Simple and reliable design structure, very easy to open for maintenance

Non-contact back-flushing cleaning, no particle larger than the screen aperture extruded through the filter screen

Consistant low pressure drop (<11Kpa) when the filter screen is clean or dirty

Very low working pressure requirement down to 30Kpa

Wide flowrate ranging from 30 to 3000 m3/ h with one single filter housing

No filtration interruption when back-flushing

Filtration degree ranges from 200μm to 2000μm

Flexible installation in the horizontal or vertical position

Equiped with differential pressure transmitter as d.p. instrument
