High Performance Scraper Filter 304 / 316L / CS With 0 - 7140 Filter Area

Basic Information
Place of Origin: Shanghai
Brand Name: LIVIC
Certification: SGS & ISO9001
Model Number: DFM
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Polywood cases
Delivery Time: 60 work days
Payment Terms: T/T, L/C
Supply Ability: 100pcs per year
Detail Information
Housing Material: CS, 304, 316L Filtration Rating: 25-3000micron
Viscosity: 1-800000cp Design Pressure: 1.0MPa
Design Temperature: 200℃ Style: Horizontal & Vernical
High Light:

Industrial Water Filtration

,

Industrial Filtration Equipment


Product Description

Automatic Scraper Filter DFM Series Self-cleaning Filter for Aviation Filtration





Description



DFM series scraping self-cleaning filter (DFM filter for short), automatically removes particles from the filter element surface by the efficiently mechanical scraping, can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for both normal and high viscous liquids. DFM series, the motor drives the scraper to rotate and remove the particles on the filter element internal surface. DFM series are good for the high viscous liquid.



Specifications:



Filter Main Type DFM22 DFM41 DFM71
Filter Area(c㎡) 0-7140
Volume(L) 0-175
Filtration Degree 100-3000μm
Design Temperature 0-200℃(determined by seal materials)
D.P. Instrument pressure transmitter / differential pressure transmitter
Inlet&Outlet Standard HG20592-2009 Flange(standard, DIN compatible ), HG20615-2009 Flange ( ANSI B16.5 compatible)DIN11851 sanitary coupling, female thread
Housing Wet Part Material 304/316L/CS
Housing Seal Material NBR/ VITON /PTFE



Applications:



Applicable industries: Water treatment, pulp and paper, petro-chemical, bio-pharmaceutical, coatings, inks, oil refinery, food and beverage

Typical applicable liquid: Wax, coal oil, monomer, water, citric acid, fermentation broth, protein, soap, wet end additive, coating, ink, adhesive, rubber, ethanol, chocolate, confectionary, juice, coolant, etc.

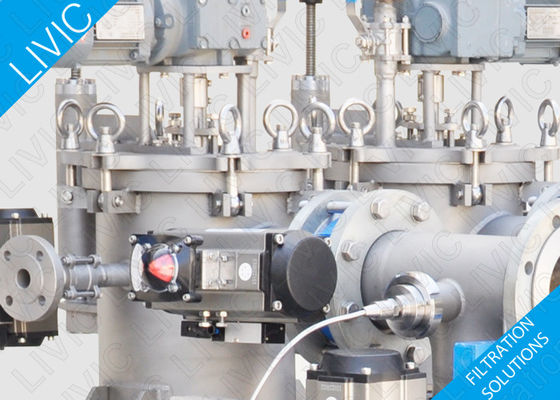

High Performance Scraper Filter 304 / 316L / CS With 0 - 7140 Filter Area 0
