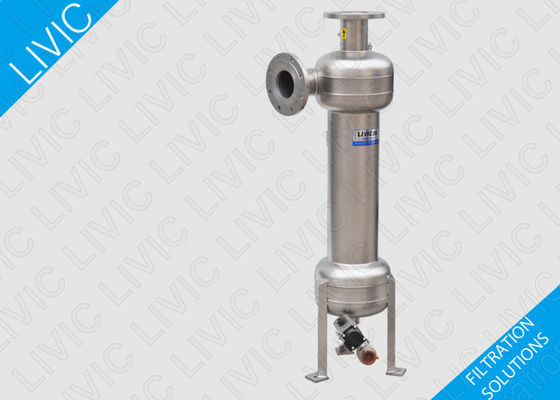

1 - 40cp Viscosity Solid Liquid Separator With 304 / 316L Housing Wet Part Material

Basic Information
Place of Origin: Shanghai
Brand Name: LIVIC
Certification: ISO9001/SGS
Model Number: VS
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Polywood
Delivery Time: 30 days
Supply Ability: 400pcs per year
Detail Information
Housing Material: 304, 316L Flowrate: 4-1145m³/h
Viscosity: 1-40cp Design Temperature: 200℃
Inlet&outlet Size: DN25-DN300 Design Pressure: 1.0MPa
High Light:

Solid Liquid Separation

,

Liquid Solid Separator


Product Description

High Efficiency Solid Liquid Separator for Industrial/Commercial Application​





Description



VS Series Centrifugal Solid-liquid Separator (VS Separator for short) is widely used in the field of solid-liquid separation. It separates precipitable particles from liquids by centrifugal force by liquid rotation. The separation efficiency of VS Separator depends on the particle density and the liquid viscosity. Larger density of particles and lower viscosity of liquid, better separation efficiency is available. For high density particles larger than 40μm, its separation efficiency can exceed 98%. VS Separator can separate solid particles as small as 5μm. When separating, VS Separator requires no moving parts and no cleaning or replacing of filter elements, so it keeps running year after year with no maintenance. The highly efficiency, consistent performance and economic running cost make it an ideal solution for solid-liquid separation process.



Specifications:



Inlet/Outlet Sizes DN25-150
Flowrate(m3/h) 7-307
Temperature (℃) 200
Design Pressure(MPa) 1.0
Pressure Drop(MPa) 0.02-0.07
Applicable Viscosity(cp) 1-40
Housing Wet Part Material 304/316L



Applications:



■ Applicable industries: Water treatment, plup and paper, petro-chemical, metal processing, chemical and biological pharmaceuticals etc.
■ Typical applicable liquid: Raw water (river water, seawater, reservoir water, groundwater), sewage treatment, circulating water, machine coolants, cleaning agents etc.
