Mechanically Stainless Steel Filter For Fluid , Low Running Cost Oil Painting Filter

Basic Information
Place of Origin: Shanghai
Brand Name: LIVIC
Certification: ISO9001/SGS/CE
Model Number: DFA
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Polywood
Delivery Time: 60 work days
Supply Ability: 100pcs per year
Contact Now
Detail Information
Housing Material: 304/316L/CS Filtration Degree: 0.05-2mm
Viscosity: 1-800000cps Flowrate Rang: 30-6500 M³/h
Design Pressure: 1.0MPa Temperature: 200℃

Product Description

Mechanically Honey Self Cleaning Filter, DFA Series for Polymer and Coatings Filtration



Description

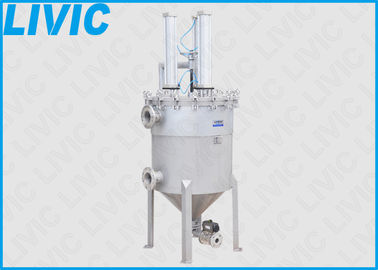

DFA series pneumatic scraping self-cleaning filter ( DFA FILTER for short), is the new high performance scraping self-cleaning filter independantly developed by LIVIC. It automatically removes the particles and impurities from the filter element internal surface by mechanical scraping and it can continuously work on-line. DFA is designed for filtration of high viscosity up to 800,000mPa.s. The filtration degree ranges from 50~1500μm. It can scrape the impurities off the filter element surface most quickly, which makes it more efficiently removing the impurities. It is applicable for water and various viscous liquid. The DFA filter is designed and manufactured by following LIVIC's high performance, high quality and high reliability standard. It is a world-class quality filter.


The conventional filters get clogged frequently when filtering the viscous liquid and removing the soft impurities. The customers have to select larger filters or clean the filter manually and freqeuntly, which means expensive investment, hard work, valuable liquid loss. DFA filter solves these kinds of problems by its advanced self-cleaning principle. It always keeps the filter element clean, discharges waste liquid with high impurity concentration, reduces the liquid loss. When filtering the viscous liquids such as dirty water, adhesives, resins, polymers and oils, DFA filter works more efficiently. DFA filter is taking place of the vibrating screen, bag filter, basket filter and some kind of back-flushing filter by its technical advantages and low running cost.



Specifications:



Filter Main Type DFA7 DFA22 DFA41 DFA71 DFA213 DFA284
Filter Area(㎡) 0.07 0.22 0.41 0.71 2.13 2.84
Filter Element Qty. 1 3 4
Volume(L) ~4 ~24 ~42 ~175 ~620 ~760
Inlet&Outlet Size DN25-DN50 DN50-DN80 DN65-DN100 DN80-DN125 DN100-DN150 DN150-DN250
Purge Size DN40
Applicable Liquid water and viscous liquid (<800000cps),impurities content<1000ppm
Filtration Degree 50-2000μm
Standard Design Pressure 1.0MPa,higher design pressure available
Design Temperature 0-200℃(determined by seal materials)
Cleaning D.P. 50-100KPa(differs by the liquid viscosity)
D.P. Instrument pressure transmitter / differential pressure transmitter
Inlet&Outlet Standard HG20592-2009 Flange(standard, DIN compatible ), HG20615-2009 Flange ( ANSI B16.5 compatible)DIN11851 sanitary coupling, female thread

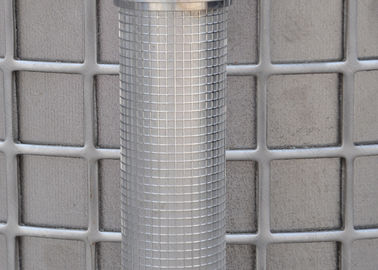

Filter Element Series MS/NS/AS
Housing Wet Part Material 304/316L/CS
Piston Material 316L
Scraper Material PTFE
Housing Seal Material NBR/EPDM/VITON/Silastic/FEP encapsulated Silastic
Element Seal Material NBR/EPDM/VITON/Silastic/FEP encapsulated Silastic
Piston Rod Seal Material NBR/PU/VITON
Purging Valve Full-port pneumatic ball valve, single action or double action, material 304/316
Facility Supply Requirement 220V AC for control system, 0.4-0.6MPa clean and dry compressed air
Custom-made Design

jacket design for thermal oil or steam, keep the temperature and fluidity
ex-proof design includ

ing the instruments and control system, for flammable and explosive applications
food grade design, safety and sanitary, easier to clean





Applications:



• Applicable Industries: petro-chemical, fine chemical, pulp and paper, food and beverage, water treatment, etc.

• Applicable Liquid Types: wax, coal oil, monomer, polymer, citric acid, fermented broth, cosmetics, silicon solution, soap, sorbitol, steriodsugar, wet end additives, adhesives, inks, lubricating oils, coatings, resin, rubber, ethanol, miscella, edible oil, juice, diesel, etc.



TECHNICAL FEATURES AND ADVANTAGES

  • Elimination or reduction in disposable filter bags and cartridges for reduced operator handling inventory costs and landfill waste
  • Reduction in product loss, more thorough contaminant purge in a highly concentrated waste stream
  • Virtually maintenance free, near 100% uptime
  • Compact design, lower capital cost to fit most installations

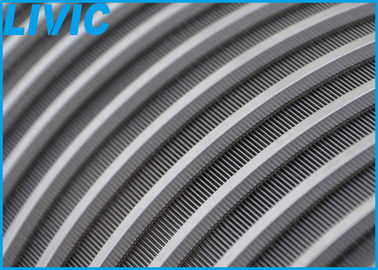

  • Stainless steel screens from 15 micron slots to 1/4" perforations to handle a wide range of filtration needs
