Fine Chemical Automatic Backwash Filter UFS Seires for Ultrafine Filtration
|Housing Wet Part Material||CS/316L304||Filtration Rating||3-500μm|
|Design Pressure||1.0MPa||Cleaning Start Mode||Time Or Pressure Drop|
Backwash Water Filter,
Auto Backwash Filter,
Ultrafine Filtration Automatic Backwash Filters
Fine Chemical Automatic Backwash Filter, UFS Seires for Ultrafine Filtration

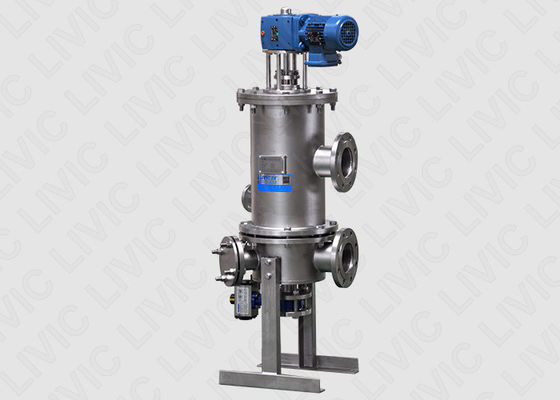

UFS Series Viscous Back-flushing Filter (UFS Filter for short), is the breakthrough innovative product in the field of precision self-cleaning filtration, world leading, based on a unique sealed back-flushing technology. It can forcefully flush impurities off the filter screen. UFS filter has the highly efficient back-flushing, high filtration rating, high flowrate and high dirty resistance capacity. The maximum filtration rating can up to 3μm, is capable to the filtration for high-value viscous liquids. UFS Filter can even work normally at poor cleanness condition.
Ordinary back-flushing self-cleaning filter gets clogged quickly when filtering water of poor cleanness at rating down to 100μm, it frequently back-flushes for a long time and wastes lots of liquid. So that customer has to select the larger filter or open the filter to cleaning the screen manually or even select low filtration ratings. While UFS Filter can also works well in such applications.
By the world leading technology advantages and efficient filtration performance, UFS Filter has become an ideal upgrading solution in the fields where ordinary back-flushing self-cleaning filters do not work well. Meanwhile, it is replacing bag filter and cartridge filter in the high precision filtration field.
|SF Filter Sub-series||UFS150||UFS250||UFS400||UFS650||UFS1000||UFS1500|

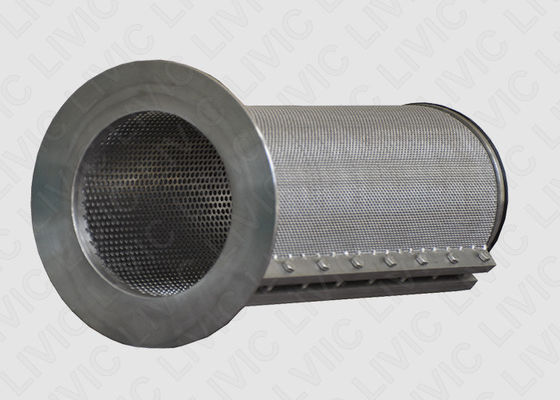

|Filter Element||Metal felt, woven metal mesh, etc.|
|Standard Design Pressure||1.0MPa|
|Housing Wet Part Material||304/316L /CS|
■ Applicable industries: petro-chemical, Fine Chemical, etc.
■ Typical applicable liquid: Diesel in petrochemical industry, gasoline, naphtha, FCC slurry oil, wox oil, VGO etc., viscose, polymers, other solvents, acid and alkali liquid filtration etc.
