Quick Open Design Basket Filter Housing 1 - 30000cp Viscosity For Machining Industry

Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001/SGS
Model Number SF
Minimum Order Quantity 1 pc
Price Negotiation
Packaging Details Polywood
Delivery Time 45 work days
Supply Ability 1000pcs per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Housing Material 304,316L, SS304,CS Filtration Rating 50-8000micron
Viscosity 1-30000cp Number Of Basket 1-24
Design Pressure 0.6MPa, 1.0MPa Filter Area 0.05-33㎡
High Light

Basket Filter Strainer

,

Water Filter Housing

Leave a Message
Product Description

Industrial Pipeline Filter Strainer Basket Filter Housing





Description

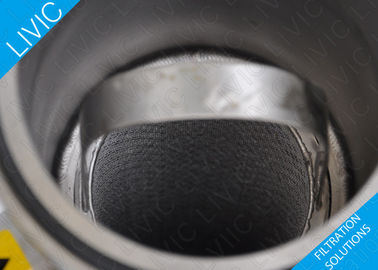

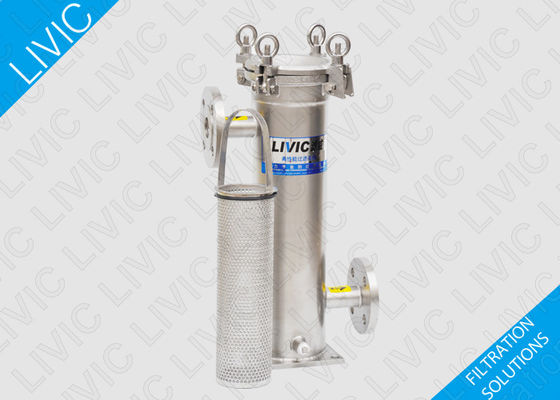

SF Series basket filter (SF filter for short) is the necessary equipment on the pipeline, as the safe-guard filter, removes large contaminant particles and protect key equipments such as pumps, nozzles, heat exchangers and valves. It can obviously extend the service life of key equipments, improve operational efficiency and avoid the risk of costly system downtime. SF filter also works well as the direct large particle filter. The metal filter basket is reusable by cleaning and cost less filter media consumption. The DuraSEP and PerSEP filter baskets especially designed for SF filter are durable and highly reliable. SF Filter can be installed onto pipelines from 1 to 48 inches. The standard design pressure is 0.6MPa and 1.0MPa. Higher custom-made design pressure is available.

SF filter has 5 sub-series: SFS series has single-basket configuration, quick-open design, suitable for most of all application at low flowrate, flexible inlet and outlet layout are available; SFS series also has single-basket configuration, flanged seal, bolts and nuts fastening, suitable for high pressure applications. SFM series has multi-basket configuration, quick-open design, suitable for high flowrate application, and with advantages of compact construction, large filter area, flexible nozzle layout and convenient changeout and cleaning of the basket. SFV series also has multi-basket configuration, flanged seal, bolts and nuts fastening, suitable for high pressure applications.SFZ series has single-basket configuration, the inlet and outlet are on the same horizontal centerline, which requires no elbow pipe Socket.



Specifications:



SF Filter Sub-series SFS SFF SFM SFV SFZ
Optional Filter Basket DuraSEP filter basket, PerSEP filter basket
Standard Design Pressure 0.6MPa/1.0MPa
Number of Basket 1-24
Filtration Rating(μm) 50-8000
Filter Area(m2) 0.05-33
Applicable Viscosity(cp) 1-30000
Housing Wet Part Material 304/316L /CS



Applications:



■ Applicable industries: Fine chemicals, water treatment systems, pulp and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.
■ Applicable liquids: Wide applicability, all liquids contained micro-impurities
