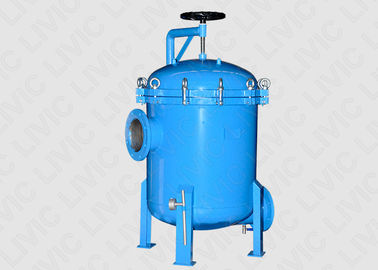

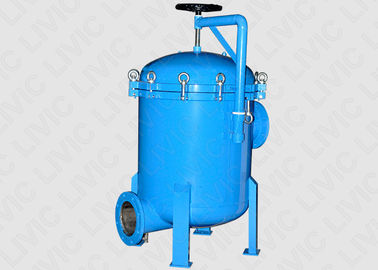

Multy Bag Filter Housing Carbon Steel for Sewage Water Filtration

  • Multy Bag Filter Housing Carbon Steel for Sewage Water Filtration
  • Multy Bag Filter Housing Carbon Steel for Sewage Water Filtration
Place of Origin Shanghai
Brand Name LIVIC
Certification ISO9001
Model Number BFM
Minimum Order Quantity 1 PC
Price Negotiation
Packaging Details Wooden Case
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 1000pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Carbon Steel Type Vertical
Motivative Force Presure Applicable Viscosity 1-20000cp
Design Pressure 0.6Mpa, 1.0MPa, 1.6MPa
High Light

Water Filter Housing

,

Stainless Filter Housing
Leave a Message
Product Description

Description



Maxline Multi-Bag Filter Housing (BFM filter for short ) is user friendly, cost effectivebag filter housing for high volume applications and processes.



Specifications:



Filter Bag Size 2-24 Size #02 bags
Maximum Operating Pressure 150 psi
Maximum Operating Temperature 400°F with Viton® seals
Number of Seals 1
Material of Construction SS 304, SS 316 or CS
Surface Finish SS–Bead blasted, CS–painted
Non-Wetted Parts Zinc-plated steel
Code Stamp ASME Section VIII Div. 1, “U” stamp
Seal Material Buna N (Max. 250F)



Applications:



Typical Applications water treatment prefiltration, circulating cooling system, heat exchanger protection, spraying nozzle protection, ballast water treatment system, ultrafiltration membrane protection

Applicable Liquids underground water, sea water, lake water, river water, circulating cooling water, sewage water, process water, cleaning water

Cover Features Reliable Swing Eye Bolt or Segment Clamp Closure Mechanism



Features

  • Available in Type 304 stainless steel, Type 316 stainless steel or carbon steel with standard Buna N o-rings, Viton® o-rings are an available as an option.
  • A counter balanced spring assisted cover lifting mechanism balances the cover perfectly giving it a "weightless" feel. Opening and closing the cover is "finger tip" easy.
  • Side inlet and bottom outlet provides easy and complete drainage. A tangential outlet option is available to reduce the height of the housing making filter bag change-out easier.
  • Unique 3-point hold down ensures a high-quality seal between each filter bag and the housing body. A supplied special tool ensures, simple effective operation.
  • Housing volume is optimized to minimize product loss.
  • Available in four sizes for 3, 4, 6, 8 or 12 standard size 02 double length filter bags.
