Surface Filtration Liquid Filter Bag , Economical Conventional Depth Filter Cartridge

Basic Information
Place of Origin: Shanghai
Brand Name: LIVIC
Certification: ISO9001/SGS
Model Number: EcoSEP
Minimum Order Quantity: 100PC
Price: Negotiation
Packaging Details: Polywood
Delivery Time: 5-45 work days
Supply Ability: 100000pcs per year
Contact Now
Detail Information
Material: Polypropylene Needle Felt/Polyester Needle Felt/Nylon Monofilament Mesh/Polypropylene Multifilament/ Polyester Multifilament Filtration Type: Depth Filtration, Surface Filtration
Efficiency Level: Nominal, Absolute Thermal Resistance: 90℃, 145℃
Filter Area: 0.1, 0.25, 0.5 ㎡ Material Of Filter Bag Collar: PP, Polyester

Product Description

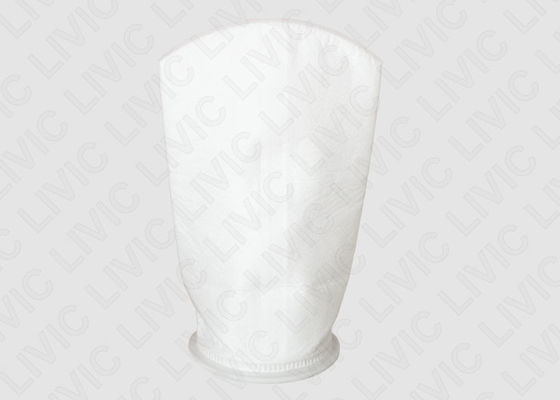

Liquid Filter Bag Filter Element





Description



EcoSEP Filter Bags are the most economic conventional filter bags with simple bag structure. It applies to the removing particles of various sizes. PP, PE needle felt bags applies to nominal precision filtration, NM nylon mesh bags applies to filtration at low ratings, PX, EX multifilament filter bags applies to absolute efficiency filtration at high filtration rating. EcoSEP has three sizes, filter area is 0.1m2, 0.25m2 and 0.5m2. It follows international standards and is compatible to bag filter housings of current mainstream brands. Optional media is PP, PE, NM, PX and EX.



LIVIC filter bag includes Depth Filtration Type and Mesh Surface Filtration Type





[Depth Filtration] Filtration layer consists of crossing fine fibers by kind of froming rules, is good at removing small solid particles and some soft impurites. It observably clarifies the liquid and is a kind of disposable filtration media. The depth space has stronger dirty holding capacity. It applies to liquid filtration of normal and low viscosity at high filtration ratings.

[Mesh Surface Filtration] Filter layer consists of smooth rigid mesh weaved by monofilament and the surface mesh is usually

square hole type. It is good to remove larger solid particles. Particle larger than mesh size will be blocked and particles smaller than mesh size pass easily. The mesh surface filtration has the screening function at set. The filter cake on the mesh surface is easy to strip and clean and the mesh filter media can be reused for several times after cleaning.



Specifications:

Material Polypropylene Needle Felt/Polyester Needle Felt/Nylon Monofilament Mesh/Polypropylene Multifilament/ Polyester Multifilament
Filtration Rating 1-1000μm
Design Temperature 0-145°C
SIZE

1#Filter Bag,Φ178mm,Length 419mm

2#Filter Bag,Φ178mm,Length 813mm

4#Filter Bag,Φ102mm,Length 355mm



Applications:

■ Applicable industries: Fine chemicals, water treatment systems, plup and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.
■ Applicable liquids: Wide applicability, all liquids contained micro-impurities.
