High Flow Rate Single Bag Filter ,Multi Stainless Steel Bag Filter For Electronics

Basic Information
Place of Origin: China
Brand Name: LIVIC
Certification: ISO9001/SGS
Model Number: BFM
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: wooden case
Delivery Time: 30 days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per year
Detail Information
Product Name: Bag Filter Housing Application: Chemical Industry,Environmental Protection
Style: Vertical Motive Force: Pressure
Type: Manual Filter Brand: LIVIC
Standard: SGS Origin: Shanghai
High Light:

Water Filter Housing

,

Stainless Filter Housing


Product Description

Maxline Multi-Bag Filter Housing for Electronics and Resins Treatment​





Description



Maxline Multi-Bag Filter Housing (BFM filter for short ) is user friendly, cost effectivebag filter housing for high volume applications and processes.



Specifications:



Filter Bag Size 2-24 Size #02 bags
Maximum Operating Pressure 150 psi
Maximum Operating Temperature 400°F with Viton® seals
Number of Seals 1
Material of Construction SS 304, SS 316 or CS
Surface Finish SS–Bead blasted, CS–painted
Non-Wetted Parts Zinc-plated steel
Code Stamp ASME Section VIII Div. 1, “U” stamp
Seal Material Buna N (Max. 250F)



Applications:



Typical Applications water treatment prefiltration, circulating cooling system, heat exchanger protection, spraying nozzle protection, ballast water treatment system, ultrafiltration membrane protection

Applicable Liquids underground water, sea water, lake water, river water, circulating cooling water, sewage water, process water, cleaning water

Cover Features Reliable Swing Eye Bolt or Segment Clamp Closure Mechanism



Features

  • Available in Type 304 stainless steel, Type 316 stainless steel or carbon steel with standard Buna N o-rings, Viton® o-rings are an available as an option.
  • A counter balanced spring assisted cover lifting mechanism balances the cover perfectly giving it a "weightless" feel. Opening and closing the cover is "finger tip" easy.
  • Side inlet and bottom outlet provides easy and complete drainage. A tangential outlet option is available to reduce the height of the housing making filter bag change-out easier.
  • Unique 3-point hold down ensures a high-quality seal between each filter bag and the housing body. A supplied special tool ensures, simple effective operation.
  • Housing volume is optimized to minimize product loss.
  • Available in four sizes for 3, 4, 6, 8 or 12 standard size 02 double length filter bags.

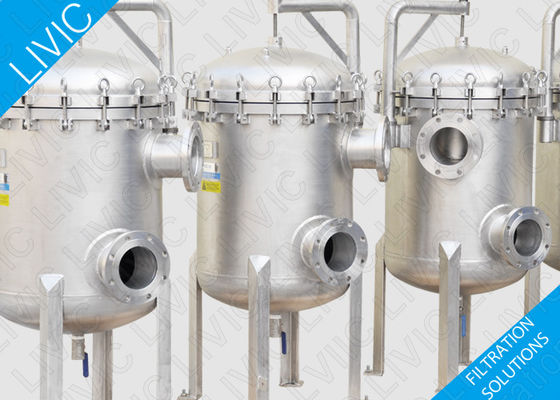

High Flow Rate Single Bag Filter ,Multi Stainless Steel Bag Filter  For Electronics 0
